60km SFP+ Fiber Optic Ethernet Transceiver 1330 Nm 10G MSA Compliant
10Gb/s SFP+ BIDI TX:1270nm/RX:1330nm 60km Optical Transceiver Module MSA compliant

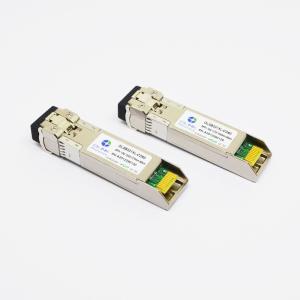

Olinkcom's OLSB231XL-CD60 is hot pluggable Small-Form-Factor SFP+ Bi-directional transceiver module, which is designed for long reach 10Gb/s duplex optical data communications application. The SFP+ BIDI module features a highly reliable 1270nm DFB transmitter and 1330nm APD photo-detector into single LC optical connector, which provides 60km link distance over single-strand single mode fiber.
Specification
• Hot-pluggable SFP+ footprint
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
• 1270nm DFB transmitter, 1330nm APD photo-detector receiver
• Distance up to 60km on single mode fiber
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 1250 | 1270 | 1290 | nm | |
| 1310 | 1330 | 1350 | |
| Ave. output power (Enabled) | PAVE | 1 | | 6 | dBm | 1 |
| Side-Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Extinction Ratio | ER | 5 | 6 | | dB | |
| RMS spectral width | Δλ | | | 1 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 50 | ps | |
| Dispersion penalty | TDP | | | 3.2 | dB | |
| Relative Intensity Noise | RIN | | | -128 | dB/Hz | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | λ | | 1330 | | nm | |
| | 1270 | | |
| Receiver Sensitivity | PSEN1 | | | -21 | dBm | 2 |
| Overload | PAVE | | | -7 | dBm | |
| LOS Assert | Pa | -40 | | | dBm | |
| LOS De-assert | Pd | | | -25 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER=6; BER<10-12; 231 – 1 PRBS.
Product Feature
1. One Fiber Bi-Di SFP+ Optical Transceiver, Bidi WDM SFP+
2. Up to 10.3 Gbps Bi-directional Data Links
3. Fully Compliant with SFP+ MSA
4. Compliant to IEEE 802.3ae 10GBASE-BX
5. SFF-8472 Digital Diagnostic Function
6. Simplex LC Connector
7. 1330TX/1270RX and 1270TX/1330RX
8. Distance Up to 10, 20, 40 km
9. Only Required +3.3 V Power Supply
10. RoHS Compliant
11. -5 to 70C Operating
Application:
10GBASE-BX at 10.3125 Gb/s
10GBASE-BX at 9.953 Gb/s
1000 Base-LX Ethernet
8XFC at 8.5Gbps
4XFC at 4.25Gpbs
2XFC at 2.125Gpbs
1xFC at 1.0625Gbps
