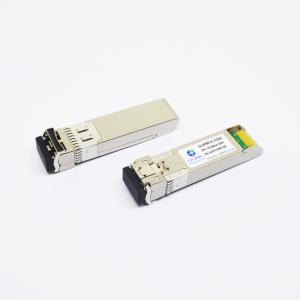

Mellanox MFM1T02A-SR Compatible 10GBASE-SR SFP+ Transceiver (MMF, 850nm, 300m, LC, DOM)
The Mellanox MFM1T02A-SR compatible transceiver provides a high performance and cost-effective solution for 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) fiber connectivity over multi-mode optical cable. It is programmed to be suitable for use with Mellanox 10-Gigabit Ethernet Switches, Security gateway appliances and Network Adapters.
Product Features
● SFP+ Form factor compliant with SFP+ MSA SFF-8431 and SFF-8461 standard
● Hot-swappable input/output device plugs into 10 Gigabit Ethernet SFP+ port
● Digital optical monitoring (DOM) capability for diagnostics
● Supports up to 11.3Gb/s bit rates
● Mellanox Compatible
● Up to 300m Reach
● 850nm Wavelength
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | | -1 | dBm | 1 |
| Extinction Ratio | ER | 4 | 4.5 | | dB | |
| RMS spectral width | Δλ | | | 1 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 50 | ps | 2 |
| Dispersion penalty | TDP | | | 3.9 | dB | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | | 840 | 850 | 860 | nm | |
| Receiver Sensitivity(ER=4.5) | PSEN1 | | | -11.1 | dBm | 3 |
| Overload | PAVE | | | 0.5 | dBm | |
| LOS Assert | Pa | -30 | | | dBm | |
| LOS De-assert | Pd | | | -12 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2. 20%~80%
3. Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Digital Diagnostic Specifications
The OLSP851XL-C(I)DS3 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 80 | ±10% | 2 |
| Transmitter output power | DTx-Power | dBm | -8 | +1 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -13 | 0 | ±2dB | |
Notes:
1. Internally measured
2. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
Wide Application
● Widely used on 10G switches, routers, servers, NICs and other transmission equipment
● Suitable for data center, enterprise wiring closet, radio & baseband unit and other environments
● Fully compatible with major networking equipment vendors worldwide
